Shapes Catalogue
Home > Shapes Catalogue
Select a shape in our catalogue...

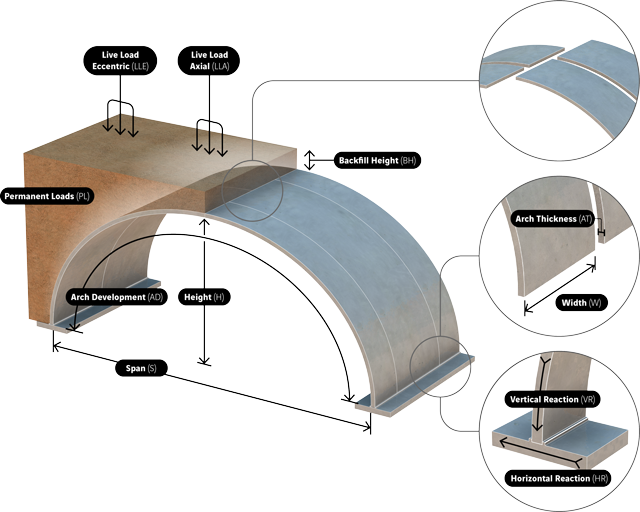

Catalog shapes (82 results)
TS-F_800/a
Span:
7.35 m
Height:
2.15 m
Width:
1 m
Arch thickness:
0.2 m
Arch development:
9.35 m
TS-F_800/b
Span:
7.72 m
Height:
2.65 m
Width:
1 m
Arch thickness:
0.2 m
Arch development:
10.41 m
TS-F_800/c
Span:
7.934 m
Height:
3.15 m
Width:
1 m
Arch thickness:
0.2 m
Arch development:
11.43 m
TS-F_800/d
Span:
8 m
Height:
3.65 m
Width:
1 m
Arch thickness:
0.2 m
Arch development:
12.44 m
TS-F_800/e
Span:
8 m
Height:
4.15 m
Width:
1 m
Arch thickness:
0.2 m
Arch development:
13.44 m
TS-F_800/f
Span:
8 m
Height:
4.65 m
Width:
1 m
Arch thickness:
0.2 m
Arch development:
14.44 m
TS-F_800/g
Span:
8 m
Height:
5.15 m
Width:
1 m
Arch thickness:
0.2 m
Arch development:
15.44 m
TS-F_900/a
Span:
7.878 m
Height:
2 m
Width:
1 m
Arch thickness:
0.225 m
Arch development:
9.63 m
TS-F_900/b
Span:
8.38 m
Height:
2.5 m
Width:
1 m
Arch thickness:
0.225 m
Arch development:
10.74 m
TS-F_900/c
Span:
8.725 m
Height:
3 m
Width:
1 m
Arch thickness:
0.225 m
Arch development:
11.8 m
TS-F_900/d
Span:
8.929 m
Height:
3.5 m
Width:
1 m
Arch thickness:
0.225 m
Arch development:
12.82 m
TS-F_900/e
Span:
9 m
Height:
4 m
Width:
1 m
Arch thickness:
0.225 m
Arch development:
13.82 m
TS-F_900/f
Span:
9 m
Height:
4.5 m
Width:
1 m
Arch thickness:
0.225 m
Arch development:
14.82 m
TS-F_900/g
Span:
9 m
Height:
5 m
Width:
1 m
Arch thickness:
0.225 m
Arch development:
15.82 m
TS-F_900/h
Span:
9 m
Height:
5.5 m
Width:
1 m
Arch thickness:
0.225 m
Arch development:
16.82 m
TS-F_1000/a
Span:
8.435 m
Height:
2 m
Width:
1 m
Arch thickness:
0.25 m
Arch development:
10.15 m
TS-F_1000/b
Span:
9.019 m
Height:
2.5 m
Width:
1 m
Arch thickness:
0.25 m
Arch development:
11.3 m
TS-F_1000/c
Span:
9.449 m
Height:
3 m
Width:
1 m
Arch thickness:
0.25 m
Arch development:
12.38 m
TS-F_1000/d
Span:
9.75 m
Height:
3.5 m
Width:
1 m
Arch thickness:
0.25 m
Arch development:
13.43 m
TS-F_1000/e
Span:
9.932 m
Height:
4 m
Width:
1 m
Arch thickness:
0.25 m
Arch development:
14.44 m
TS-F_1000/f
Span:
10 m
Height:
4.5 m
Width:
1 m
Arch thickness:
0.25 m
Arch development:
15.44 m
TS-F_1000/g
Span:
10 m
Height:
5 m
Width:
1 m
Arch thickness:
0.25 m
Arch development:
16.44 m
TS-F_1000/h
Span:
10 m
Height:
5.5 m
Width:
1 m
Arch thickness:
0.25 m
Arch development:
17.44 m
TS-F_1000/i
Span:
10 m
Height:
6 m
Width:
1 m
Arch thickness:
0.25 m
Arch development:
18.44 m
TS-F_1200/a
Span:
10.814 m
Height:
3 m
Width:
1 m
Arch thickness:
0.25 m
Arch development:
13.49 m
TS-F_1200/b
Span:
11.249 m
Height:
3.5 m
Width:
1 m
Arch thickness:
0.25 m
Arch development:
14.58 m
Download your files
TS-F_1200/b (metric)
TS-F_1200/b (imperial)
TS-F_1200/b (catalog)
TS-F_1200/b (catalog)
TS-F_1200/c
Span:
11.578 m
Height:
4 m
Width:
1 m
Arch thickness:
0.25 m
Arch development:
15.63 m
TS-F_1200/d
Span:
11.811 m
Height:
4.5 m
Width:
1 m
Arch thickness:
0.25 m
Arch development:
16.66 m
TS-F_1200/e
Span:
11.952 m
Height:
5 m
Width:
1 m
Arch thickness:
0.25 m
Arch development:
17.67 m
TS-F_1200/f
Span:
12 m
Height:
5.5 m
Width:
1 m
Arch thickness:
0.25 m
Arch development:
18.67 m
TS-F_1200/g
Span:
12 m
Height:
6 m
Width:
1 m
Arch thickness:
0.25 m
Arch development:
19.67 m
TS-F_1200/h
Span:
12 m
Height:
6.5 m
Width:
1 m
Arch thickness:
0.25 m
Arch development:
20.67 m
TS-F_1200/i
Span:
12 m
Height:
7 m
Width:
1 m
Arch thickness:
0.25 m
Arch development:
21.67 m
TS-F_1400/a
Span:
12.461 m
Height:
3.25 m
Width:
1 m
Arch thickness:
0.3 m
Arch development:
15.31 m
TS-F_1400/b
Span:
12.941 m
Height:
3.75 m
Width:
1 m
Arch thickness:
0.3 m
Arch development:
16.42 m
TS-F_1400/c
Span:
13.323 m
Height:
4.25 m
Width:
1 m
Arch thickness:
0.3 m
Arch development:
17.49 m
TS-F_1400/d
Span:
13.616 m
Height:
4.75 m
Width:
1 m
Arch thickness:
0.3 m
Arch development:
18.53 m
TS-F_1400/e
Span:
13.825 m
Height:
5.25 m
Width:
1 m
Arch thickness:
0.3 m
Arch development:
19.55 m
TS-F_1400/f
Span:
13.954 m
Height:
5.75 m
Width:
1 m
Arch thickness:
0.3 m
Arch development:
20.56 m
TS-F_1400/g
Span:
14 m
Height:
6.25 m
Width:
1 m
Arch thickness:
0.3 m
Arch development:
21.56 m
TS-F_1400/h
Span:
14 m
Height:
6.75 m
Width:
1 m
Arch thickness:
0.3 m
Arch development:
22.56 m
TS-F_1400/i
Span:
14 m
Height:
7.25 m
Width:
1 m
Arch thickness:
0.3 m
Arch development:
23.56 m
TS-F_1400/j
Span:
14 m
Height:
7.75 m
Width:
1 m
Arch thickness:
0.3 m
Arch development:
24.56 m
TS-F_1600/a
Span:
14.836 m
Height:
4.25 m
Width:
1 m
Arch thickness:
0.35 m
Arch development:
18.81 m
TS-F_1600/b
Span:
15.217 m
Height:
4.75 m
Width:
1 m
Arch thickness:
0.35 m
Arch development:
19.87 m
TS-F_1600/c
Span:
15.521 m
Height:
5.25 m
Width:
1 m
Arch thickness:
0.35 m
Arch development:
20.91 m
TS-F_1600/d
Span:
15.745 m
Height:
5.75 m
Width:
1 m
Arch thickness:
0.35 m
Arch development:
21.94 m
TS-F_1600/e
Span:
15.903 m
Height:
6.25 m
Width:
1 m
Arch thickness:
0.35 m
Arch development:
22.95 m
TS-F_1600/f
Span:
15.985 m
Height:
6.75 m
Width:
1 m
Arch thickness:
0.35 m
Arch development:
23.95 m
TS-F_1600/g
Span:
16 m
Height:
7.25 m
Width:
1 m
Arch thickness:
0.35 m
Arch development:
24.95 m
TS-F_1600/h
Span:
16 m
Height:
7.75 m
Width:
1 m
Arch thickness:
0.35 m
Arch development:
25.95 m
TS-F_1600/i
Span:
16 m
Height:
8.25 m
Width:
1 m
Arch thickness:
0.35 m
Arch development:
26.95 m
TS-F_1600/j
Span:
16 m
Height:
8.75 m
Width:
1 m
Arch thickness:
0.35 m
Arch development:
27.95 m
TS-F_1800/a
Span:
16.09 m
Height:
4.25 m
Width:
1 m
Arch thickness:
0.375 m
Arch development:
19.81 m
TS-F_1800/b
Span:
16.574 m
Height:
4.75 m
Width:
1 m
Arch thickness:
0.375 m
Arch development:
20.92 m
TS-F_1800/c
Span:
16.981 m
Height:
5.25 m
Width:
1 m
Arch thickness:
0.375 m
Arch development:
21.99 m
TS-F_1800/d
Span:
17.316 m
Height:
5.75 m
Width:
1 m
Arch thickness:
0.375 m
Arch development:
23.04 m
TS-F_1800/e
Span:
17.583 m
Height:
6.25 m
Width:
1 m
Arch thickness:
0.375 m
Arch development:
24.08 m
TS-F_1800/f
Span:
17.786 m
Height:
6.75 m
Width:
1 m
Arch thickness:
0.375 m
Arch development:
25.1 m
TS-F_1800/g
Span:
17.925 m
Height:
7.25 m
Width:
1 m
Arch thickness:
0.375 m
Arch development:
26.11 m
TS-F_1800/h
Span:
18 m
Height:
7.75 m
Width:
1 m
Arch thickness:
0.375 m
Arch development:
27.11 m
TS-F_1800/i
Span:
18 m
Height:
8.25 m
Width:
1 m
Arch thickness:
0.375 m
Arch development:
28.11 m
TS-F_1800/j
Span:
18 m
Height:
8.75 m
Width:
1 m
Arch thickness:
0.375 m
Arch development:
29.11 m
TS-F_2000/a
Span:
18.031 m
Height:
5 m
Width:
1 m
Arch thickness:
0.4 m
Arch development:
22.46 m
TS-F_2000/b
Span:
18.489 m
Height:
5.5 m
Width:
1 m
Arch thickness:
0.4 m
Arch development:
23.56 m
TS-F_2000/c
Span:
18.881 m
Height:
6 m
Width:
1 m
Arch thickness:
0.4 m
Arch development:
24.63 m
TS-F_2000/d
Span:
19.21 m
Height:
6.5 m
Width:
1 m
Arch thickness:
0.4 m
Arch development:
25.68 m
TS-F_2000/e
Span:
19.48 m
Height:
7 m
Width:
1 m
Arch thickness:
0.4 m
Arch development:
26.72 m
TS-F_2000/f
Span:
19.693 m
Height:
7.5 m
Width:
1 m
Arch thickness:
0.4 m
Arch development:
27.74 m
TS-F_2000/g
Span:
19.851 m
Height:
8 m
Width:
1 m
Arch thickness:
0.4 m
Arch development:
28.75 m
TS-F_2000/h
Span:
19.953 m
Height:
8.5 m
Width:
1 m
Arch thickness:
0.4 m
Arch development:
29.76 m
TS-F_2000/i
Span:
20 m
Height:
9 m
Width:
1 m
Arch thickness:
0.4 m
Arch development:
30.76 m
TS-F_2200/a
Span:
19.747 m
Height:
5.5 m
Width:
1 m
Arch thickness:
0.45 m
Arch development:
24.63 m
TS-F_2200/b
Span:
20.218 m
Height:
6 m
Width:
1 m
Arch thickness:
0.45 m
Arch development:
25.73 m
TS-F_2200/c
Span:
20.626 m
Height:
6.5 m
Width:
1 m
Arch thickness:
0.45 m
Arch development:
26.8 m
TS-F_2200/d
Span:
20.974 m
Height:
7 m
Width:
1 m
Arch thickness:
0.45 m
Arch development:
27.86 m
TS-F_2200/e
Span:
21.271 m
Height:
7.5 m
Width:
1 m
Arch thickness:
0.45 m
Arch development:
28.9 m
TS-F_2200/f
Span:
21.516 m
Height:
8 m
Width:
1 m
Arch thickness:
0.45 m
Arch development:
29.93 m
TS-F_2200/g
Span:
21.712 m
Height:
8.5 m
Width:
1 m
Arch thickness:
0.45 m
Arch development:
30.95 m
TS-F_2200/h
Span:
21.858 m
Height:
9 m
Width:
1 m
Arch thickness:
0.45 m
Arch development:
31.96 m
TS-F_2200/i
Span:
21.954 m
Height:
9.5 m
Width:
1 m
Arch thickness:
0.45 m
Arch development:
32.96 m
TS-F_2200/j
Span:
22 m
Height:
10 m
Width:
1 m
Arch thickness:
0.45 m
Arch development:
33.97 m
